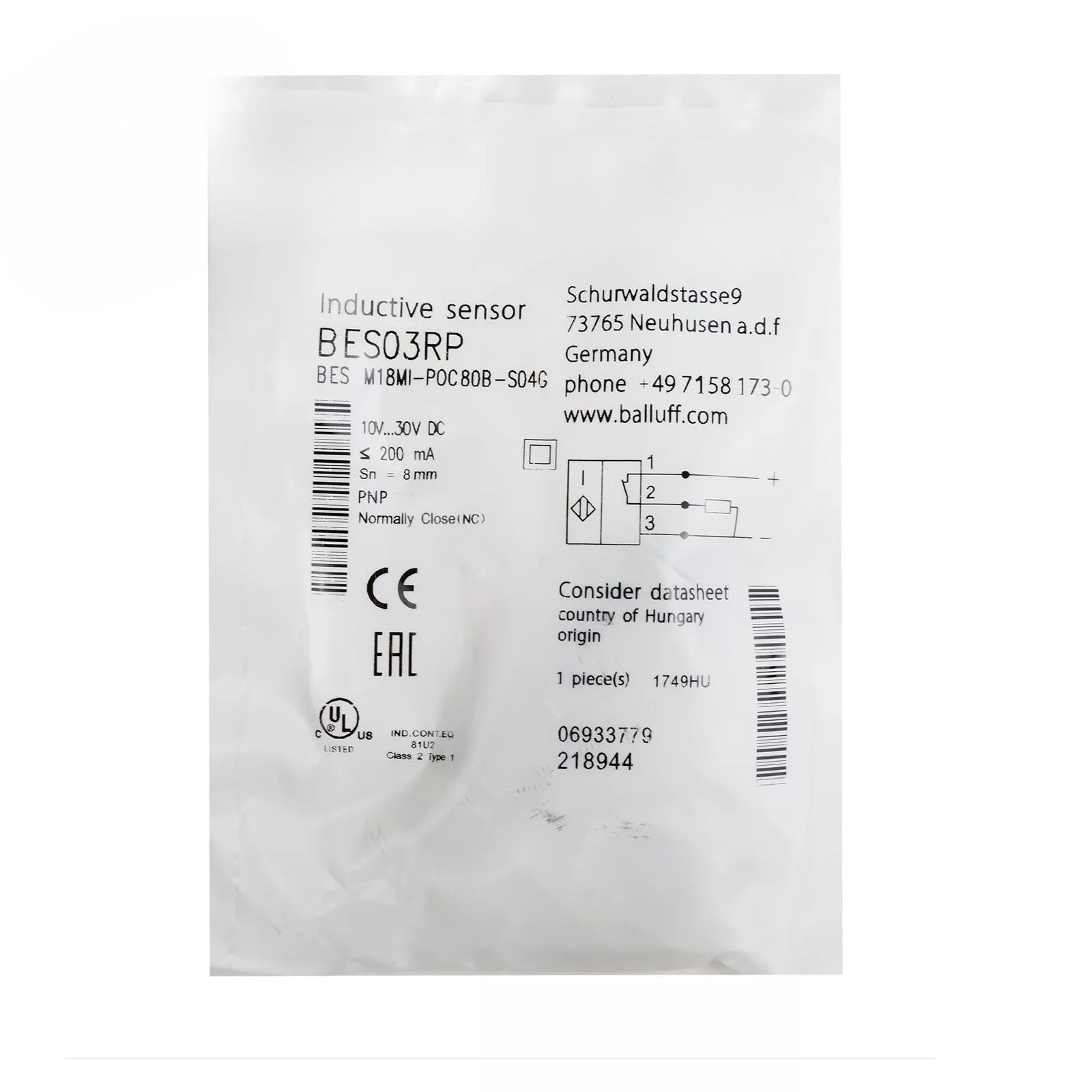

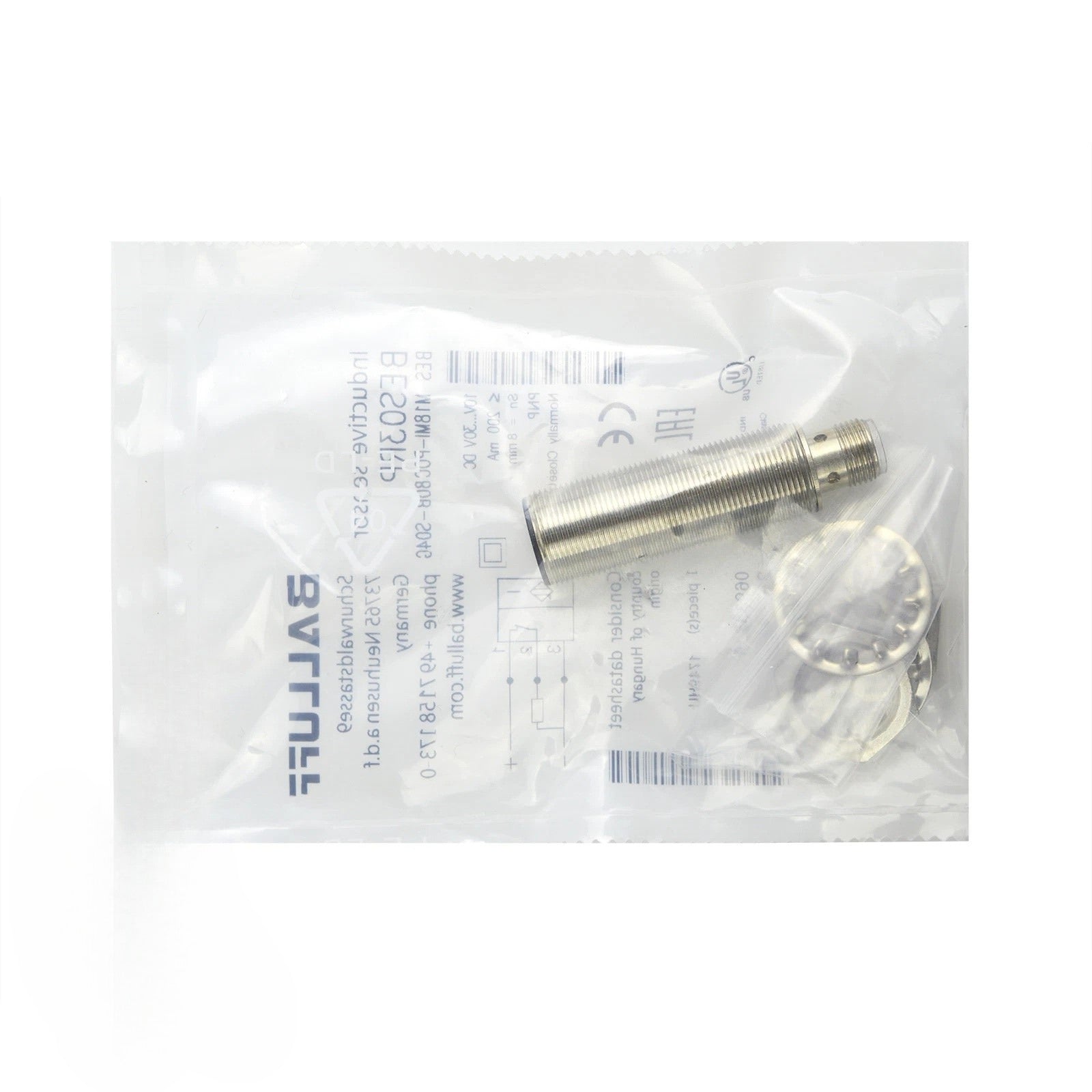

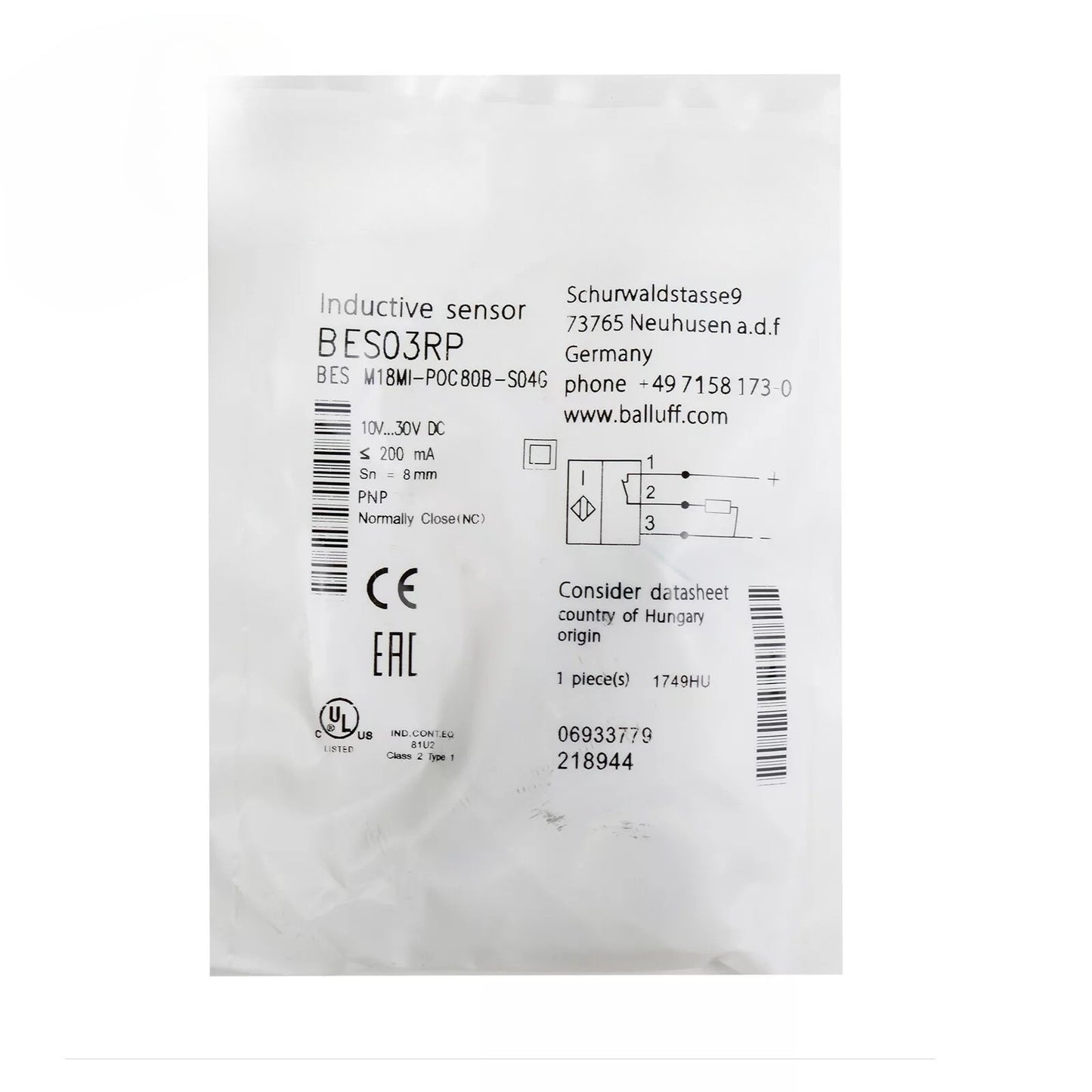

BES03RP BES M18MI-POC80B-S04G sensor for BALLUFF

Condition:New
MPN:BES03RP
compatible new,tested in good working situation
package:1 piece Only
Country of Origin:China

Full model name: BES M12MG-NSC80B-S04G (BES03RP is its order number).
Dimension specification: M12 threaded cylindrical housing, 51mm in length.
Detection distance: 8mm (detection range for metal targets).
Mounting method: Non-flush mounting (the sensor head must not be flush with the metal mounting surface, and a gap needs to be reserved).
Output type: NPN output, normally open (NO) contact.
Power supply voltage: 10-30V DC (direct current power supply).
Switching frequency: Up to 1000Hz (capable of efficiently responding to objects in high-frequency motion).
Protection class: IP67 (completely dustproof, can be briefly immersed in water at a depth of 1 meter).
Housing material: Nickel-plated brass (housing), PBT (sensing surface).
Wiring method: 4-pin M12 circular connector, facilitating quick installation and connection.
