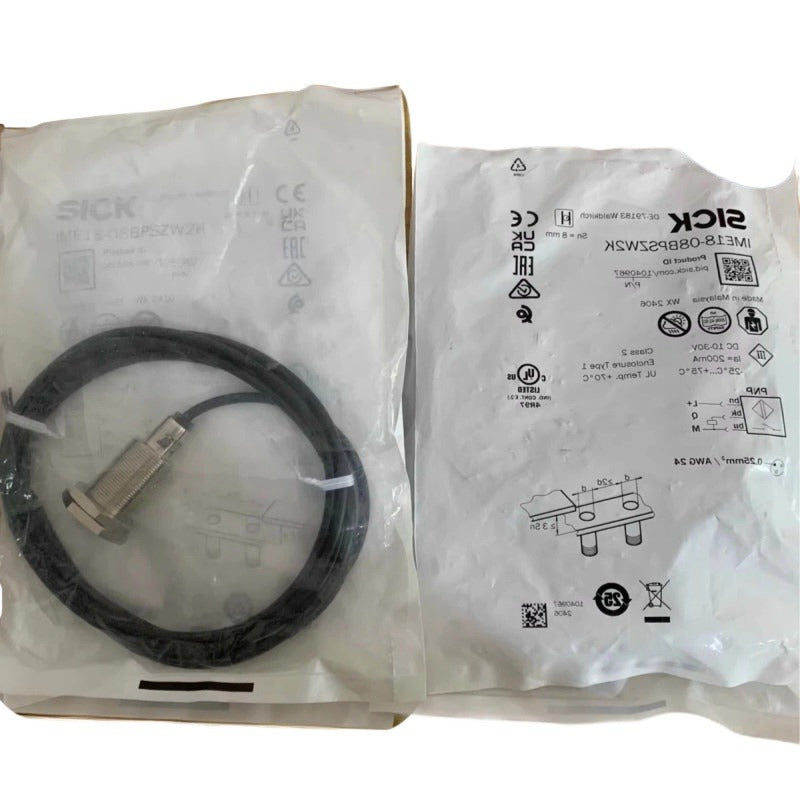

sensors proximity switches For SICK IME18-08BPSZW2K
sensors proximity switches For SICK IME18-08BPSZW2K
Regular price
$45.00 USD
Regular price
$0.00 USD
Sale price
$45.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Supply voltage 10 V DC... 30 V DC
The residual ripple is ≤ 10%
Voltage drop ≤ 2 V 1)
(Proximity sensor) The delay before starting to work after power on is ≤ 100 ms
5 % lag... 15 %
Reproducibility
≤ 2%2)
3)
The temperature drift (Sr) was ± 10%
Electromagnetic compatibility according to EN 60947-5-2
The sustained current Ia ≤ 200 mA
No load current ≤ 10 mA
Wire material PVC
The cross section of the wire is 0.25 mm²
The diameter of the wire is Ø 3.9 mm
Short circuit insurance
Energized pulse protection
Shock and vibration resistance 30 g, 11 ms/10 Hz... 55 Hz, 1 mm
Operating ambient temperature -- 25 °C... +75 °C
Shell material brass, nickel plated
Material, sensing surface plastic, PA 66
The length of the shell is 48 mm
The available thread length is 33 mm
The maximum tightening torque is ≤ 40 Nm
UL file number NRKH.E181493
The residual ripple is ≤ 10%
Voltage drop ≤ 2 V 1)
(Proximity sensor) The delay before starting to work after power on is ≤ 100 ms
5 % lag... 15 %
Reproducibility
≤ 2%2)
3)
The temperature drift (Sr) was ± 10%
Electromagnetic compatibility according to EN 60947-5-2
The sustained current Ia ≤ 200 mA
No load current ≤ 10 mA
Wire material PVC
The cross section of the wire is 0.25 mm²
The diameter of the wire is Ø 3.9 mm
Short circuit insurance
Energized pulse protection
Shock and vibration resistance 30 g, 11 ms/10 Hz... 55 Hz, 1 mm
Operating ambient temperature -- 25 °C... +75 °C
Shell material brass, nickel plated
Material, sensing surface plastic, PA 66
The length of the shell is 48 mm
The available thread length is 33 mm
The maximum tightening torque is ≤ 40 Nm
UL file number NRKH.E181493
