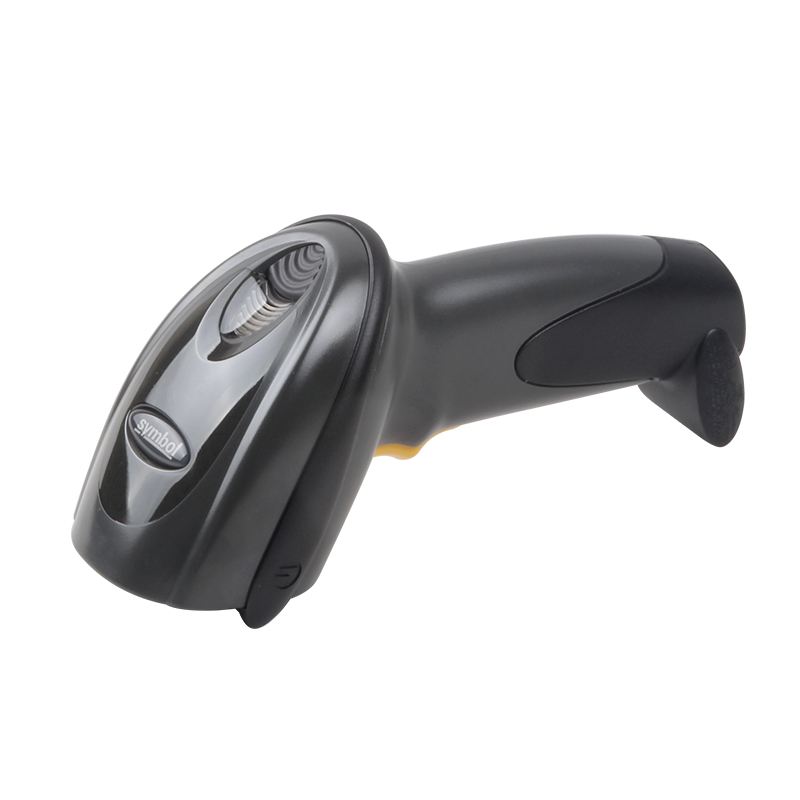

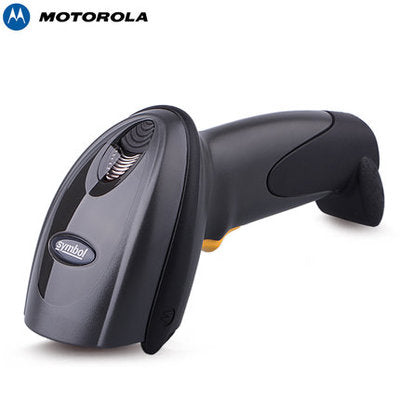

New and original motorola/Symbol Ds6707-HD 2d bar code high-precision scanner metal engraving code CPU code Free shpping

Physical parameters

Dimensions: 6.55 inches (high) x 5.08 inches (long) x 2.82 inches (wide)

16.6 cm (height) x 12.9 cm (length) x 7.1 cm (width)

Weight: 6.4 ounces /182 grams

Voltage and current: 5 + / - 10%VDC (current: 350mA)

Color: white or light black similar to a cash register

The performance parameters

Light source: focusing: 650 nm laser diode

Lighting: 630 nm LED

Vision: (30 ° vertically (vertical) x 40 °) x (horizontal) level

Rotate/tilt, perspective/offset Angle: 360 ° / + 65 ° / + 60 °

Code type decoding ability

One dimension:UPC/EAN, UPC/EAN with supplemental, Code 39, Code 39 Full ASCII, tri-optic Code 39, GS1DataBar (original RSS), Code 128, Code 128 Full ASCII, gs1-128 (original UCC/ ean-128), Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32

PDF417 (and variants) : PDF417, microPDF417, and composite code

Zip code: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal and Dutch Postal, Post US4

Two-dimensional: MaxiCode, DataMatrix(ECC 200), QR Code, microQR, Aztec

Rated working range: see decoding area

Print contrast: print contrast with a minimum of 25% bar code

Movement deviation: horizontal velocity: 5 inches (12.7 cm) per second

Supported interfaces: USB and rs-232

Imaging parameters

Image (pixel) 1.3 million pixels: 1280 (horizontal) x 1024 (vertical)

Supported image formats: images can be exported in Bitmap, Jpeg, and Tiff formats

Image transmission speed: USB 1.1: maximum 12 Megabits/ SEC exported images

RS232: highest 115 KB baud rate

Image transmission time: general USB application: 100 KB compressed Jpeg file transfer time is about 0.2 seconds

Using the environment

Working temperature: 32 ° F to 122 ° F / 0 ° C to 50 ° C

Storage temperature: - 40 ° F to 158 ° F / - 40 ° C to 70 ° C

Humidity: 5% to 95% (non-condensable)

Fall specification: can withstand multiple falls from 6 feet (1.8 meters) to the concrete floor

Environmental light anti-interference ability: no interference from normal indoor artificial lighting conditions and outdoor natural lighting conditions (direct sunlight)

Relevant laws and regulations

Electrical safety: ul6950-1, CSA C22.2 No. 60950-1, en60950-1 / iec60950-1

Laser safety: en60825-1:1994 +A1: 2002+A2 :2001, iec60825-1, 21cfr1040.10 and 21cfr1040.11, CDRH Class II, IEC Class

EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, CISPR22, CISPR24;

Medical electrical equipment: en60601-1-2:2002

Environment: follow RoHS directive 2002/95/EEC

Installation options (attachments) : smart stent installation height can be adjusted: 5 to 10 inches (12.7 to 25.4 cm), the installation Angle can be adjusted: 0 ° to 90 °.Table top and wall mounting supports are also available

Power supply: power supply can be used for applications that do not supply power through the main cable
