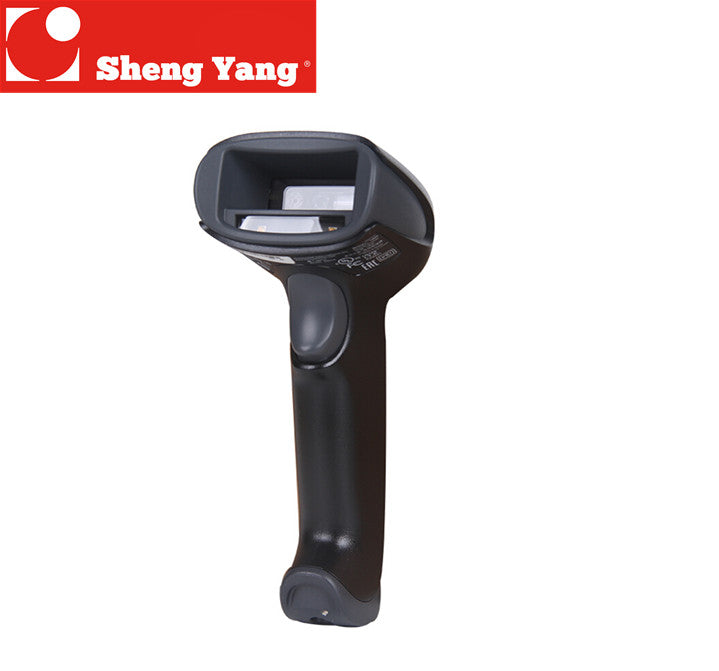

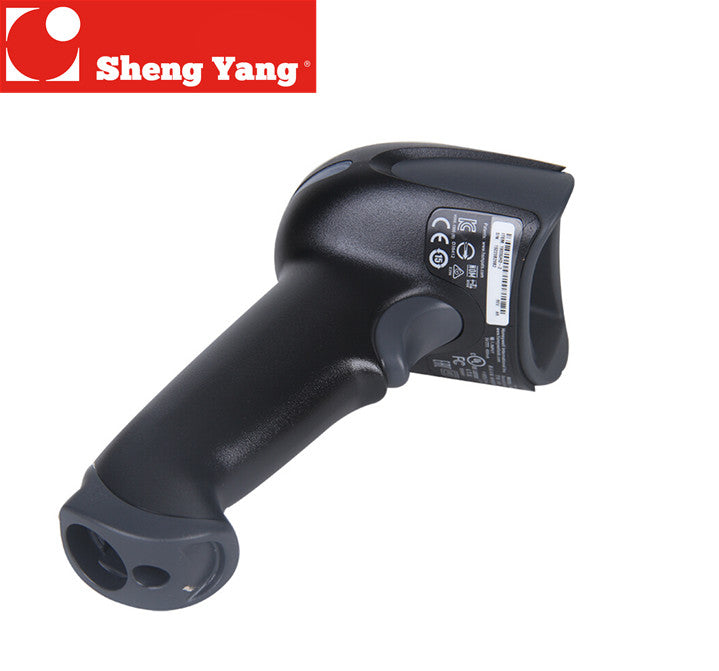

New and original Honeywell scanner 1900GSR qr code 2D scanner warehouse medical logistics high speed decoder Free shpping

\

Specifications of honeywell 1900 2d scan gun:

Physical parameters

Scanning gun volume (length x width x height) : 104 x 71 * 160mm

Weight: 147 g

Electrical parameters

Input voltage: 4VDC ~ 5.5 VDC

Operating power: 2.3 W (450mA @ 5VDC)

Standby power: 0.45w (90mA @ 5VDC)

Host system interface: USB, keyboard port, RS232, IBM46xx (RS485)

Environmental parameters:

Operating temperature: 0 ° ~ 50 ° C C

Storage temperature: - 40 ° C to 70 C

Humidity: 0% ~ 95% relative humidity, no condensation

Resistance to fall: can withstand 50 falls from 1.8 meters (6 ') to the cement floor

Environmental seal level: IP41

Light level: 0 to 100,000 lux (9, 290 feet by candlelight)

Ratchet wheel rotation: the ratchet bracket can support 1O, 000 rotation (once the whole motion is completed by the scanner), which can ensure that the scanner is in the ratchet position

Scanning performance:

Scanning mode: 2d image (838 x 640 pixels)

Movement tolerance: 13milUPC is moving at a distance of nearly 610cm/s (240in/s)

Scanning Angle: high density: 41.4 ° level;Vertical: 32.2 °

42.4 ° SR: standard distance level:;33 ° vertically:

Long ER: level: 31.6 °;Vertical: 24.4 °

Bar code contrast: 20% small reflection difference

Angle, the Angle: 45 °, 65 °

Decoding ability: interpreting standard 1D, PDF, 2D, zip code and OCR code: decoding ability is affected by component configuration

Warranty for three years

1. Basic use steps:

(1) plug the connected cable into the computer USB interface (plug and play, no drive).

(2) place the cursor at the place where you want to enter the scan information or the computer randomly opens a document. Scan the one-dimensional bar code with a scanning gun, and the document shows success.
