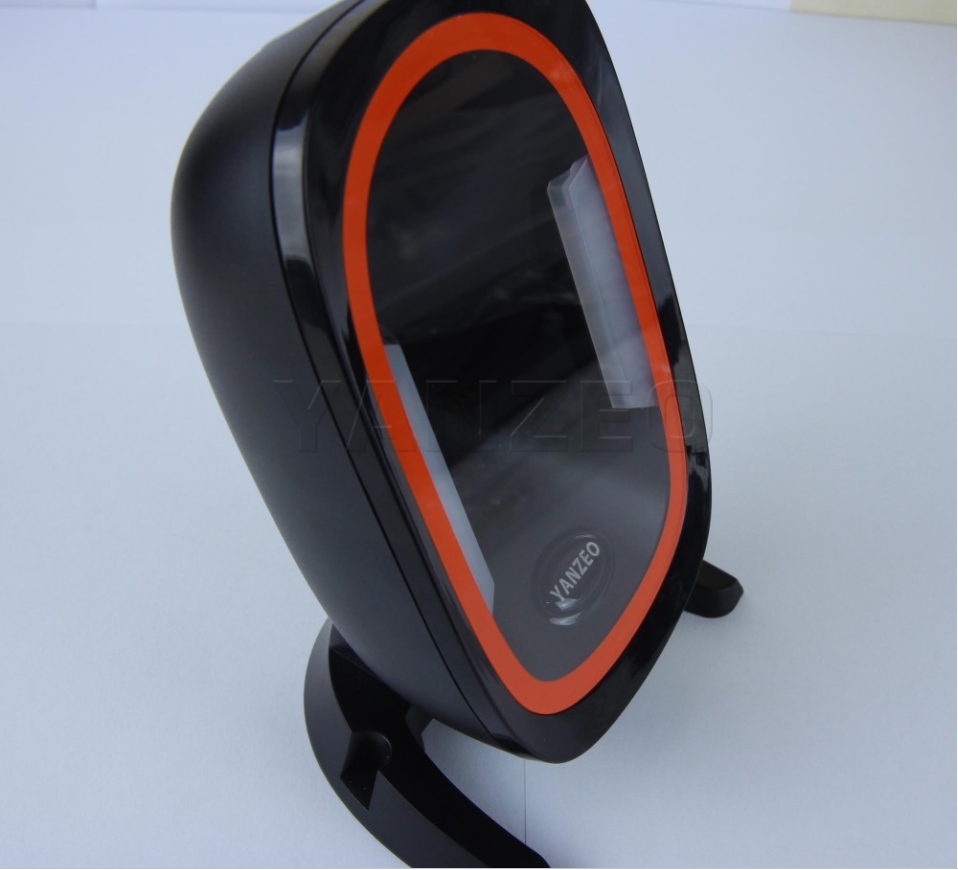

Free shipping full-automatic full-range high-performance one-dimensional two-dimensional barcode scanning platform

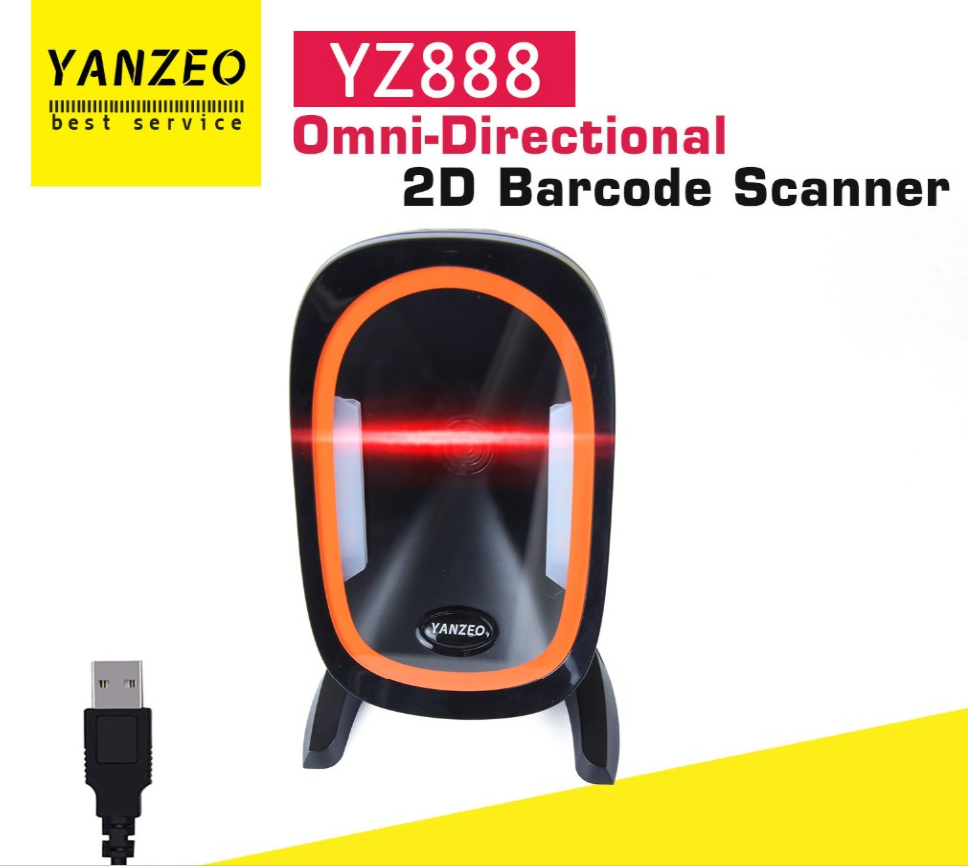

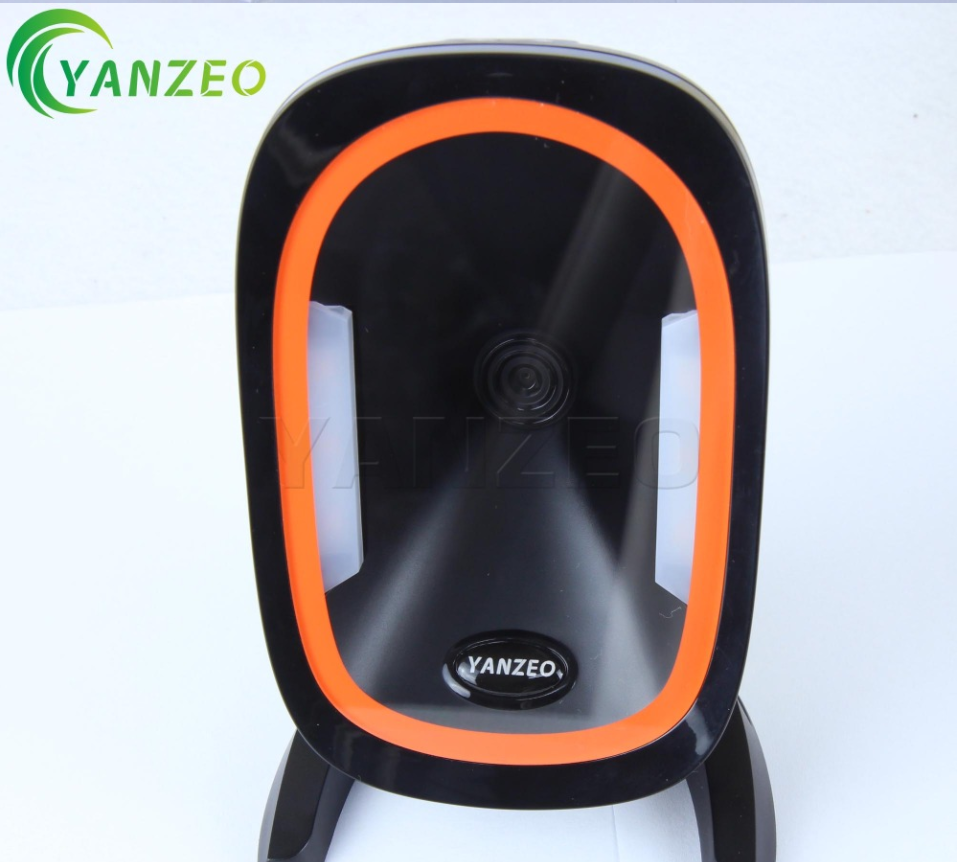

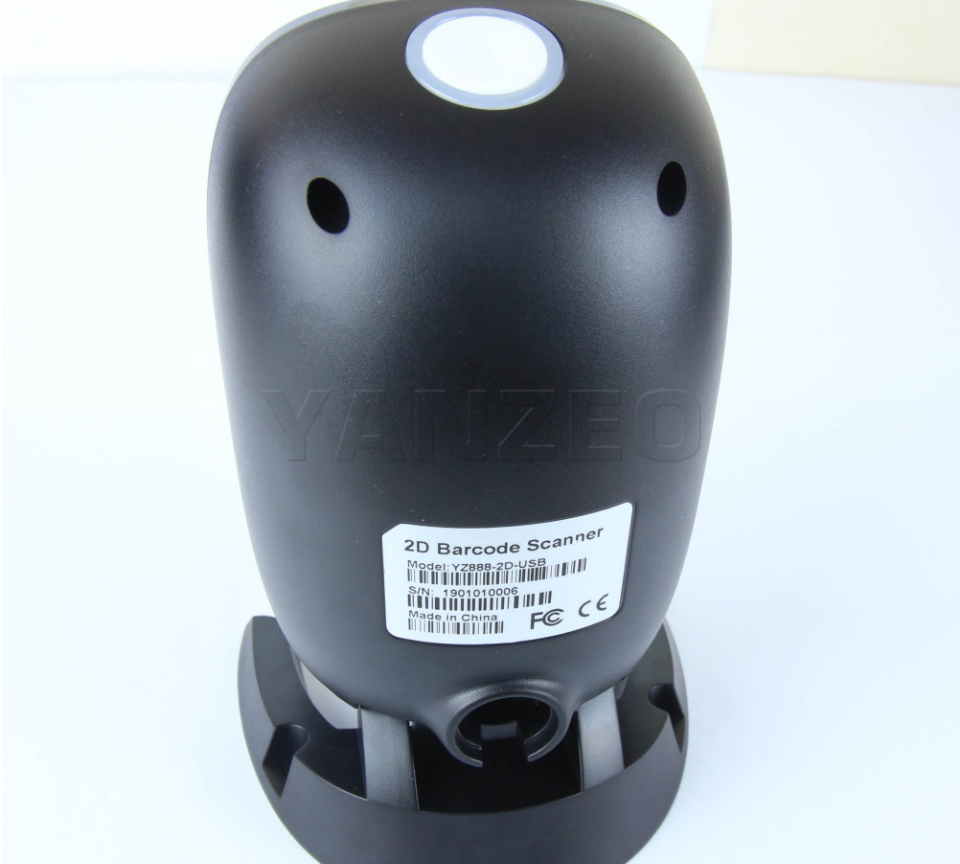

Yanzeo YZ888 High Speed Omni-directional USB RS232 2D Image Barcode scanner Place of Origin: Guangdong China (Mainland) Brand Name: YANZEO Model Number:YZ888 Name: 2D Barcode Scanner Feature ● Can read screen bar codes such as mobile phones and computers. ● USB and RS232 interface, can automatically match device,plug and play. ● Unique shape design,rotatable base to meet many scanning applications. ● Using the most advanced decoding algorithm, can decode most 1Dand 2D. ● Blue and red LED indicator,double buzzer to adapt to various nosy environments. Application area: Mainly used in small supermarkets, convenience stores, specialty stores, payment, medical etc Technical Specifications OPERATIONAL PARAMETER Image (pixels) 640 pixels(H)*480 pixels(v) Light Source Aiming:617 nm LED ;illumination:6500K LED Decode Capability 2D： QR Code, Data Matrix, PDF417,Aztec, Maxicode，Hanxin code etc. 1D： UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded Depth of Filed 0-200mm @ UPC/EAN 13mil PCS=90%；0-150mm @ QR 20mil PCS=100% Scan Angle Left and right 60deg/Front and Rear 60deg/Move360deg Field of view 48deg horizontally, 30deg vertical Read Resolution ge 5mil Print Contrast ge25% Visual Indicator Blue LED Lights , Double Buzzer Interface TTL-232 , USB (HID-KBW、V-Com) PHYSICAL CHARACTERISTICS Size 100mm*82mm*150mm（L*W*H） Weight 200g（Without Cable） Cable Standard 1.8M straight POWER PARAMETER Input Voltage 5VDCplusmn10% Working current 400mA ENVIRONMENTAL PARAMETER Operating Temperature -20℃~+60℃ Working Humidity 5% to 95% relative humidity, non-condensing Storage Temperature -40℃~+70℃ Light Levels 0~100,000Lux
