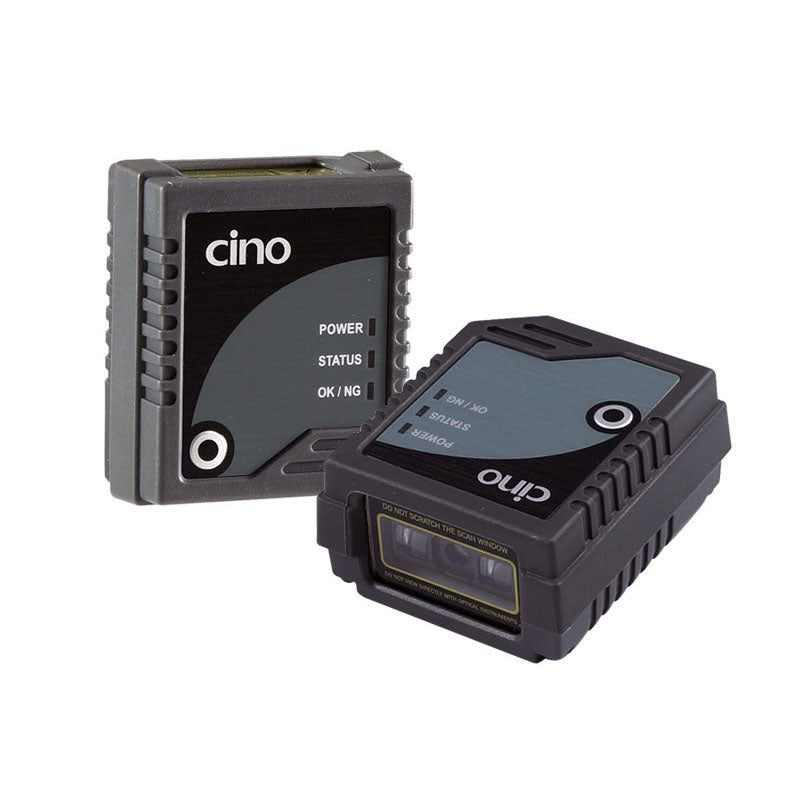

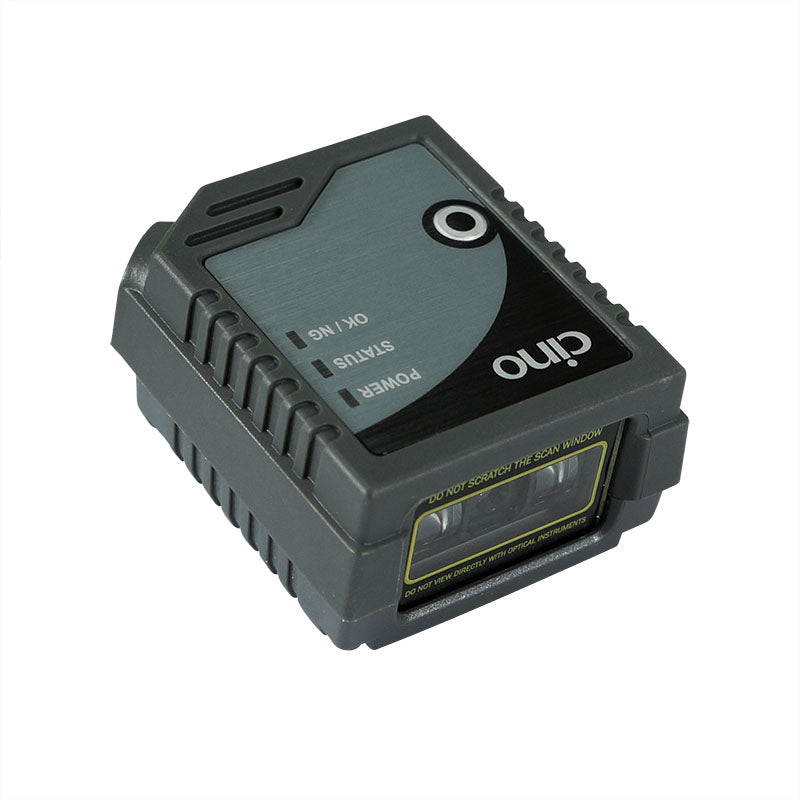

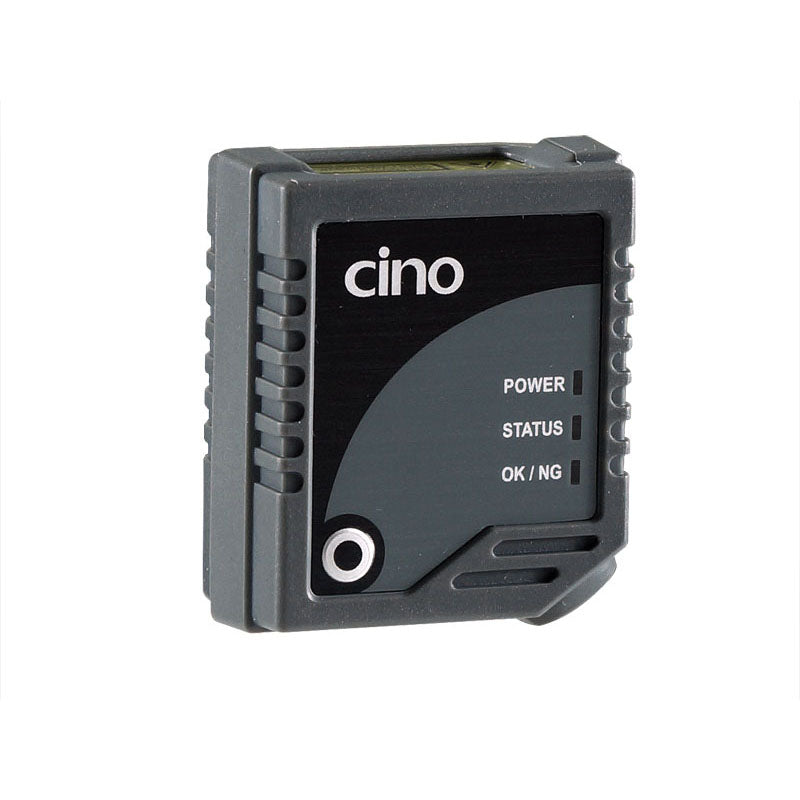

CINO FM480 High Performance Fixed Mount Barcode Scanner 1D PDF417 with USB Cable

FM480 Series

A Durable, High Performance Fixed Mount Scanner for General Purpose and Industrial Applications

• Durable overmold construction and IP54 design

• Ultra-compact and easy mounting design for flexible integration

• Choice of front-view or side-view model for diverse application demands

• Rich indication and user interface for intuitive operations

• Support both external trigger and serial trigger

• Additional OK and NG output signals for precise reading control

• Useful test mode for quick and optimal installation

• Outstanding reading capability on 3 mil barcode with more than 3” depth of field

• Up to 34” reading distance on 100% UPC/EAN symbols

• High speed scanning rate up to 500 scans per second for snappy barcode capture

• Unsurpassed readability on low contrast, soiled, poorly-printed or damaged barcodes

• Supports GS1 DataBar, PDF, MicroPDF and composite code

• Integrated with the innovative FuzzyScan 3.0 Imaging Technology and durable ultra-compact design, the FM480 series Fixed Mount Scanner from Cino impresses the user with outstanding scanning performance and industrial level dependability. This cost-effective FM480 creates the best value to boost your productivity for industrial and general purpose applications.




  Ultra-compact yet durable design

  Thanks to the ultra-compact, robust overmold and IP54 rating construction, the FM480 is not only ideal for embedded scanning solutions such as kiosks and lottery terminals, but also perfect for industrial applications such as conveyer line scanning and test tube verification. The choice of front-view or side-view model and the design of industrial level M3 mounting holes make F480 easy to be mounted anywhere and integrated with any device.




  Rich user interface and useful test mode

  Equipped with 3 visible LED indicators and audible beeper, FM480 provides intuitive indication for users to monitor the reading status. The useful test mode allows users to identify the optimal reading position with ease.




  Outstanding reading performance

  The FM480 provides superb performance on reading damaged, smudged, poorly-printed and low contrast barcode labels that are commonly found in the real world quickly and accurately.

• Performance Characteristics

  Optical System	High performance Linear Imaging Engine
  Print Contrast	20% minimum reflective difference
  Minimum Resolution	Typical 3 mil (code 39, PCS 0.9)
  Working Distance	Up to 24 inches on 100% UPC/EAN symbols Up to 34 inches on 20 mil Code 39
  Light Source	630nm visible red LED
  Scan Rate	Dynamic scanning rate up to 500 scans per second
  Reading Direction	Bi-directional (forward and backward)
  Pitch/Skew	± 65°/ ± 65°/ ± 55°
  Operating Modes	Trigger, Alternative, Level, Force, Presentation
  Host Interfaces	RS232 serial USB HID (USB Keyboard) USB COM port emulation
  Configuration Setup	Bar code command, Serial command Windows utility - FuzzyScan PowerTool
  Data Editing	Condensed DataWizard via bar code command Full-feature DataWizard via FuzzyScan PowerTool
  User Interfaces	3 LEDs for power, Status, OK/NG indications Test button Programmable beeper

  Supported Symbologies

  1D Linear	Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic Code 128, GS1-128, Codabar, Code 11, Code 93 Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5 German Postal Code, China Postal Code, IATA UPC/EAN/JAN, UPC/EAN/JAN with Addendum Telepen, MSI/Plessey & UK/Plessey GS1 DataBar (formly RSS) Linear, Linear-stacked
  Linear-stacked	PDF417, Micro PDF417, Codablock, Composite

  User Environment

  Drop Specifications	Withstand 1.5m/5ft. drop to concrete
  Environmental Sealing	IP54
  Operating Temperature	-10°C to 50°C (14°F to 122°F)
  Storage Temperature	-40°C to 70°C (-40°F to 158°F)
  Humidity	5% to 95% related humidity, non-condensing
  Ambient Light Immunity	0 ~ 100,000 lux
  ESD Protection	Functional after 15kV discharge

  Physical & Electrical Characteristics

  Dimension	47.6 mm (L) x 40.6 mm (W) x 23.1 mm (D) 1.87 in. (L) x 1.60 in. (W) x 0.91 in. (D)
  Weight	120g (RS232 and Universal version) 95g (USB version)
  Scan Window	Choice of front-view or side-view model
  Connector	9-pin D-sub female (RS232 version) USB 4-pin Type A (USB version) 15-pin D-sub HD female (Universal version)
  Mounting	2 screw holes (M3 x 4mm in depth)
  Input Voltage	5VDC ± 10%
  Current	Operating : Typical 165 mA @5VDC Standby : Typical 70 mA @5VDC

  Safety & Regulatory

  EMC	CE,FCC,BSMI,VCCI,KC
  Safety	LED Eye Safety IEC62471, Exempt Group
  Environmental	Compliant with RoHS directive
