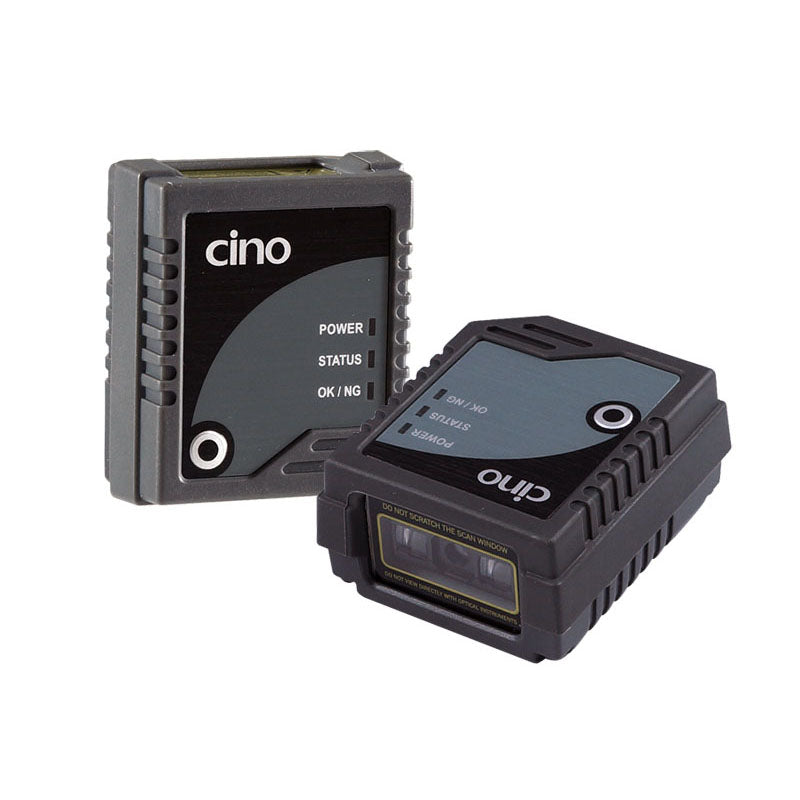

CINO FA480 Fixed Mount Barcode Scanner 1D 2D PDF417 with USB Cable

FA480 Series

Compact 2D fixed mount scanner for general purpose applications

• Compact and durable design with IP54 sealing

• Reads challenging and problematic barcodes

• Choice of front-view or side-view scanning direction

• Intelli Button™ helps with scanner positioning

• Smart Scenes™ for quick adaption to diverse applications

• Multilingual output support

• Single scan setup with iCode

• Advanced data processing with DataWizard Premium

• Security Plus offers free security to host applications

•


• Powered by Cino’s exclusive imaging technology, FuzzyScan FA480 is built to deliver unparalleled scanning performance within a small form factor. This fixed mount scanner not only captures most barcodes in a flash, it can also read a great number of challenging and problematic barcodes, such as distorted or damaged barcode labels, electronic coupons on screens with poor lighting. Thanks to a compact and durable design, the FA480 is ideal for stand-alone use, as well as embedded applications, such as ATMs, kiosks, parcel lockers, or other self-service terminals.

•


• Scan All Your Needs

• Powered by Cino’s exclusive imaging technology, the FA480 delivers unparalleled reading performance on virtually any barcode in any condition, providing an excellent solution for enterprises that require reliable and high throughput barcode scanning.

•


• Excellent reading performance

• The FA480 delivers exceptional reading performance on a wide range of barcodes. It also captures a great number of challenging and problematic barcodes, such as dense, soiled, distorted, damaged, or overwrapped barcode labels, as well as electronic coupons displayed on screens with poor lighting.

•


• Complete lineup for diverse needs

• The Standard-Range model is designed to fulfill the vast majority of scanning requirements. It offers swift readings on both regular and high-density barcodes, making this model an excellent choice for general purpose applications. To capture very high-density 2D barcodes, or DPM codes that appear on items such as electronic components, or medical equipment, Cino offers a specialized High-Density model.

•


• Ease of Integration

• With its compact form factor, as well as two scan directions and three host interface cables to choose from, the FA480 is designed for ease of integration and offers a high level of adaptability.

•


• Compact and durable

• The FA480’s compact size is perfect for applications with space constraints. Whether used as a stand-alone device or embedded in a terminal, its small footprint will allow for an easy fit. Its over-molded shell offers IP54-rated protection and withstands multiple drops to concrete from a height of 1.5m.

•


• Different scanning directions

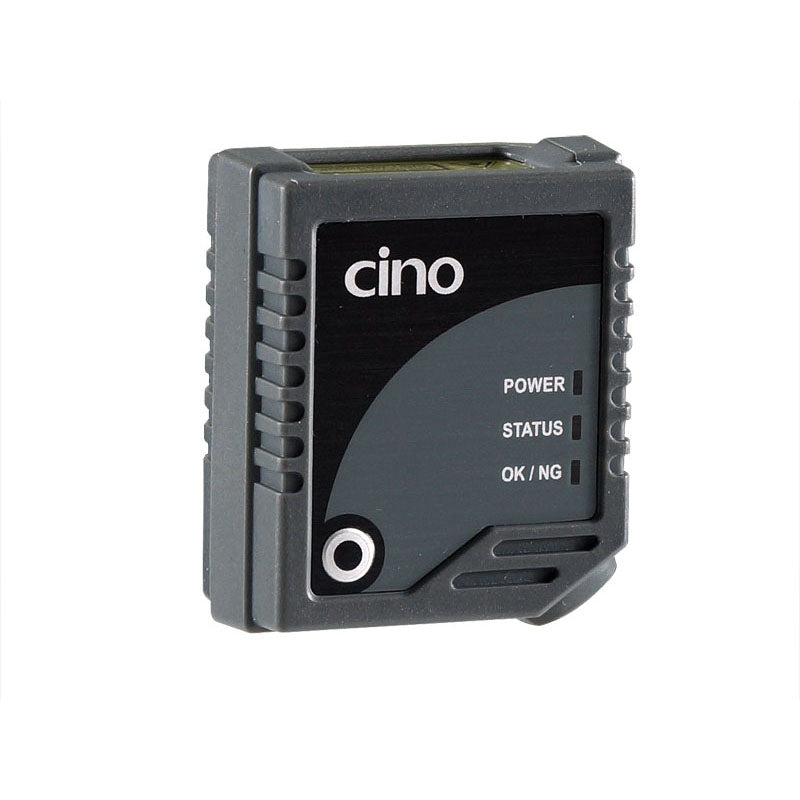

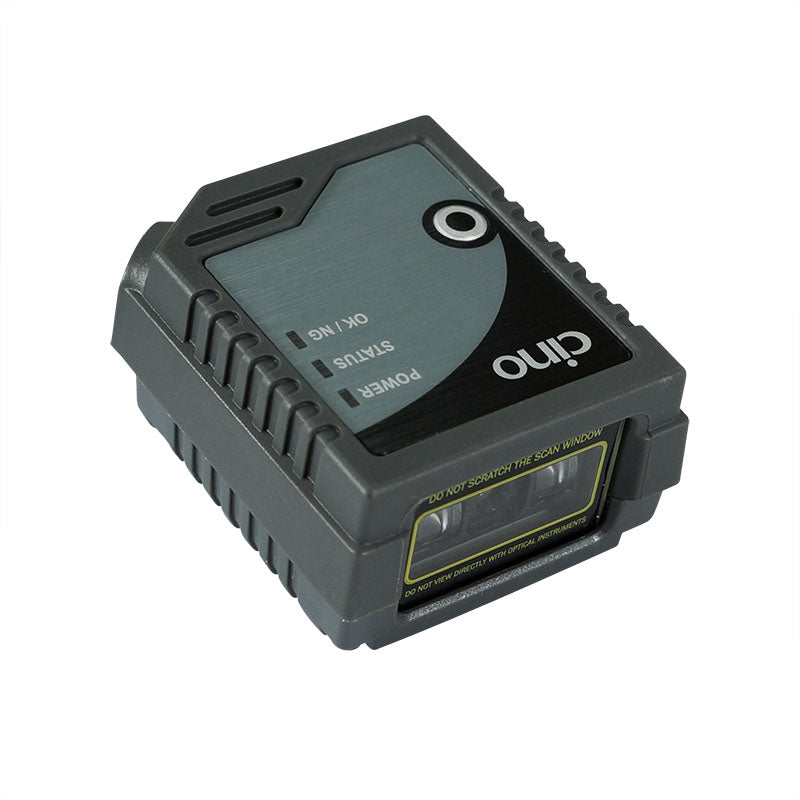

• Users can select either a front-view or side-view scanning direction depending on integration needs. The side-view scanning direction is particularly suited to space-limited application such as blood analyzers.

•


• Intelli Button™ for optimal installation

• The FA480 is equipped with an Intelli Button™, which not only serves as a physical trigger for manual programming, but can also work as a switch to activate the test mode, allowing users to find the most optimal position for installation.

•


• A choice of host interface cables

• To accommodate host connection requirements, we offer a choice of interface cables: RS232, USB, or Universal. The Universal model provides great adaptability by supporting external triggers, plus OK and NG signal outputs to fulfill more advanced requirements.

•


• Useful user-defined serial trigger

• This fixed mount scanner supports user-defined serial trigger commands. It can therefore adopt the command of other scanner that FA480 replaced, and minimizes the amount of integration work.

•


• A Set of Features Bring Maximum Value

• The FA480 inherits the advantageous features of FuzzyScan Family, presenting enhanced usability and exceptional added-value.

•


• Advanced imaging control

• If applicable, users can control more advanced imaging parameters, such as exposure time and digital gain, allowing you to optimize the scanner’s setting in accordance with specific application requirements.

•


• Multilingual output removes language barriers

• Cino 2D scanners can be configured to output almost all languages, including Arabic, German, Greek, Russian, and Turkish, etc. They can also transmit Asian languages such as simplified Chinese, traditional Chinese, Japanese and Korean. This feature enables users around the world to use their own languages, removing linguistic barriers and expanding business horizons.

•


• Single scan setup via iCode

• The iCode is a macro barcode command designed to simplify and accelerate your setup process. Instead of configuring your scanners with multiple barcodes, users can achieve identical results with a single iCode. It lowers risk of misconfiguration, expedites field deployments and reduces field service expenses. The iCode will accelerate your workflow and increase your efficiency.

•


• Powerful data processing

• DataWizard Premium is a unique feature designed for FuzzyScan barcode scanners. It allows them to execute advanced data formatting and complex data processing tasks, fulfilling a wide range of requirements. This also reduces the need for costly or time-consuming changes to your host application. DataWizard Premium brings exceptional flexibility and value that boost your productivity.

•


• Cost-Free Security for business protection

• Security Plus guards your host application by restricting access to authorized Cino scanners only. This powerful safety mechanism blocks connection attempts by unrecognized scanners, thereby preventing unsanctioned use. Security Plus delivers peace of mind by offering a reliable security solution that protects businesses at no extra cost.

• Performance Characteristics

  Image Sensor	1280 x 800 Pixels
  Print Contrast	18% minimum reflective difference
  Light Source	660nm LED
  Min. Resolution	SR Model 2.7mil Code 39 4.8mil DM HD Model 2.4 mil Code 39 4.5 mil DM
  Reading Range	SR Model 13 mil (0.33mm) UPC/EAN up to 19.6” HD Model 13 mil (0.33mm) UPC/EAN up to 14.1”
  Roll, Pitch, Skew	Roll: 360°; Pitch: ± 75°; Skew: ± 65°
  Motion Tolerance	Up to 617 cm/s (243 in/s)
  Host Interfaces	USB HID (USB Keyboard) USB VCOM (USB COM port emulation) Standard RS232 serial
  Configuration Setup	FuzzyScan Barcode commands FuzzyScan iCode FuzzyScan PowerTool
  Data Processing	DataWizard Premium
  Image Capture	BMP format

• Physical Characteristics

  Dimension	47.6 mm (L) x 40.6 mm (W) x 25.6 mm (H) 1.87 in. (L) x 1.60 in. (W) x 1.01 in.(H)
  Weight	101g
  Scan Window	Choice of front-view or side-view model
  Connector	FA480-00x  9-pin D-sub female FA480-11x  4-pin USB Type A FA480-98x  15-pin D-sub HD female
  Input Voltage	5VDC ± 10%
  Current	Operating : Typical 360 mA @5VDC Standby : Typical 220 mA @5VDC

• Decode Capability

  1D Linear Codes	Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey , GS1 DataBar, Linear & Linear Stacked
  2D Codes	PDF417, Micro PDF417, Codablock F, Code 16K, Code 49, Composite Codes, DataMatrix, MaxiCode, QR Code, MicroQR, Aztec
  Postal Codes	Australian Post, US Planet, US Postnet, Japan Post, Posi LAPA 4 State Code

• User Environment

  Drop Specifications	Withstand multiple 1.5m/5ft. drops to concrete
  Environmental Sealing	IP54
  Operating Temperature	-20°C to 50°C (14°F to 122°F)
  Storage Temperature	-40°C to 70°C (-40°F to 158°F)
  Humidity	5% to 95% related humidity, non-condensing
  Ambient Light Immunity	0 ~ 100,000 lux
  ESD Protection	Functional after 15kV discharge

• Safety & Regulatory

  EMC	CE, FCC, BSMI, VCCI, KC
  Safety	LED Eye Safety IEC62471, Exempt Group
  Environmental	Compliant with RoHS directive
