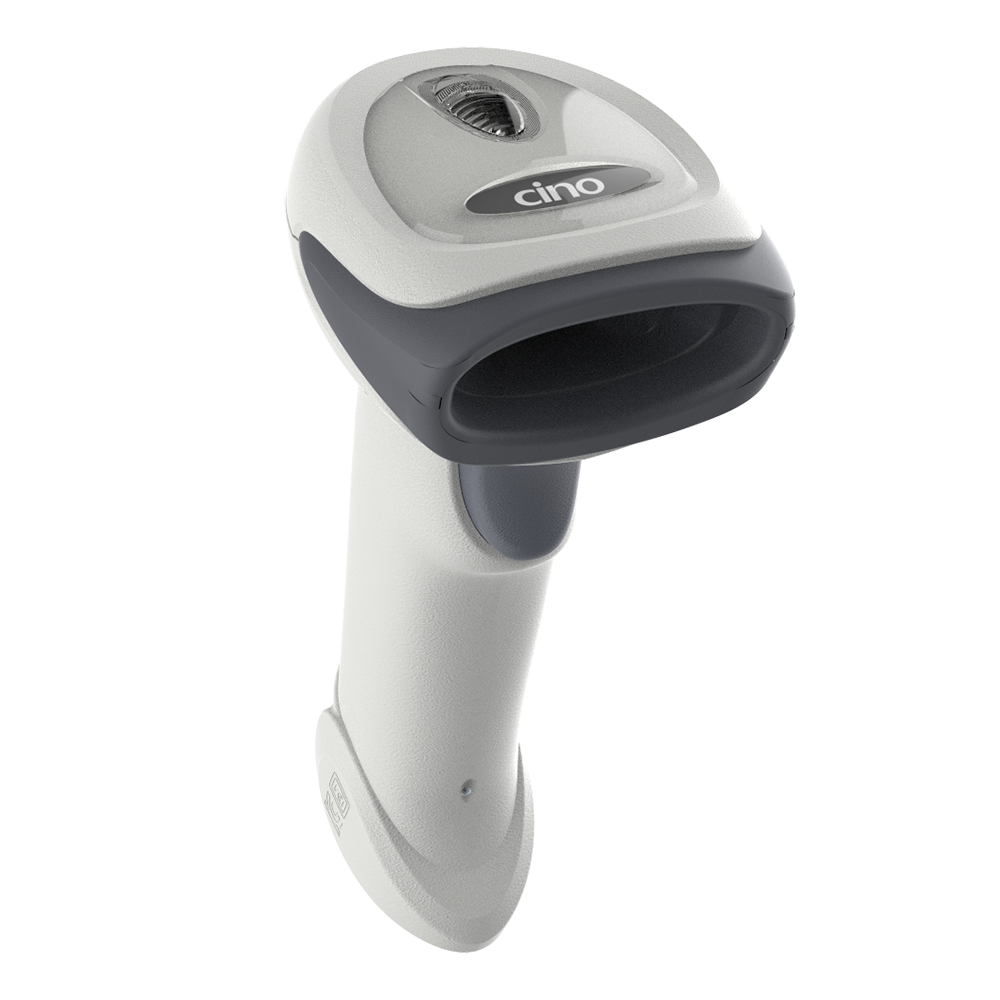

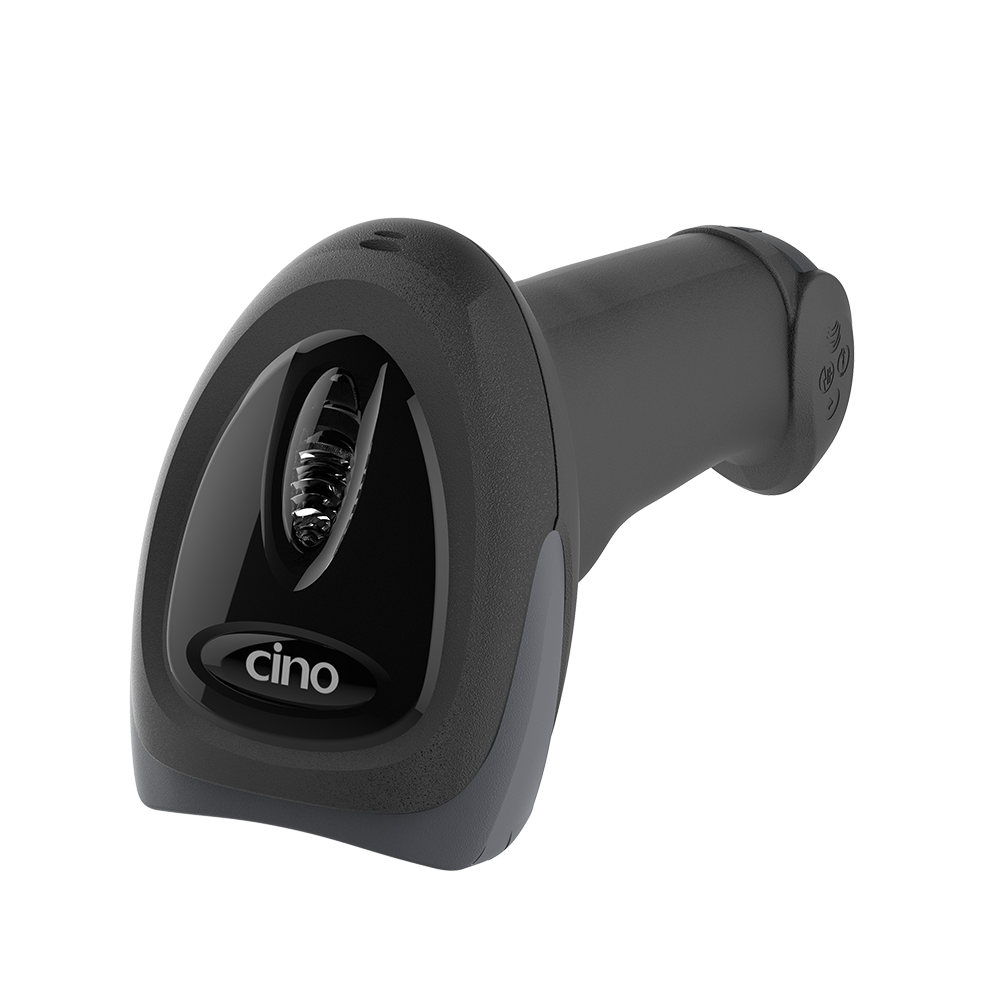

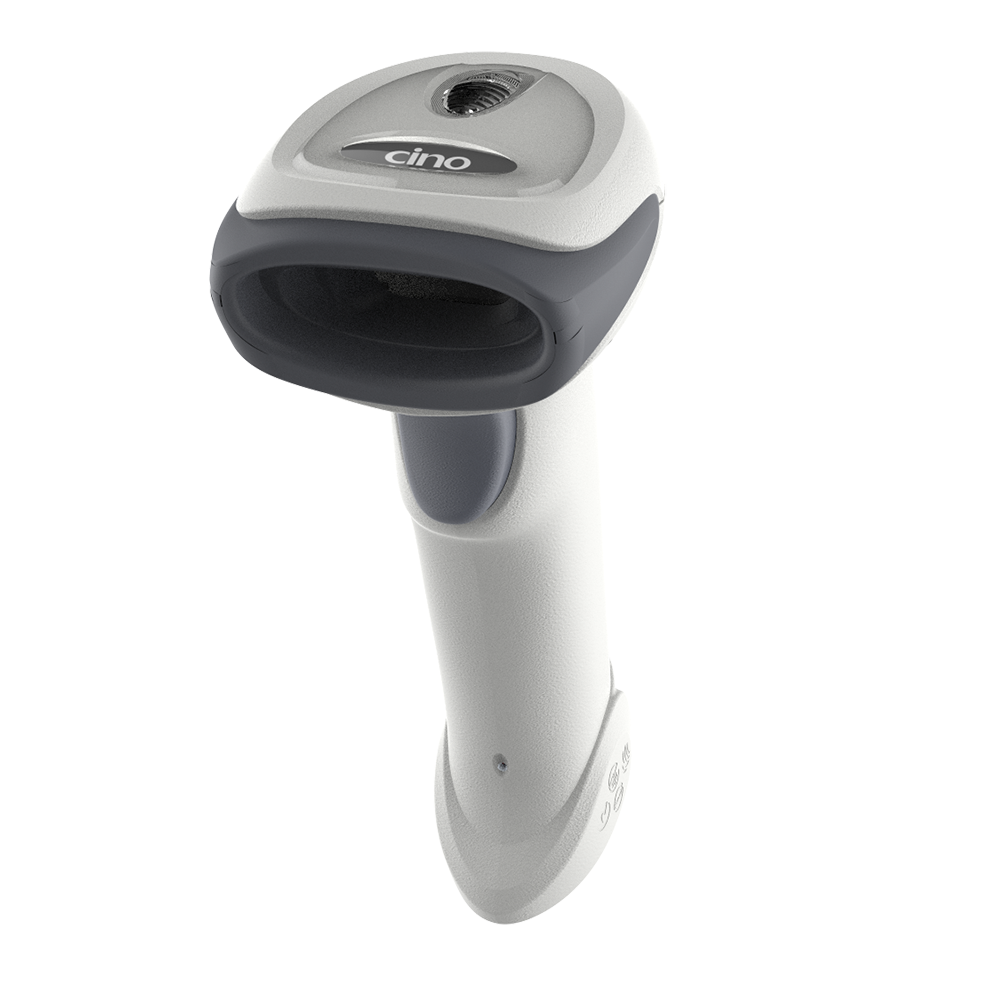

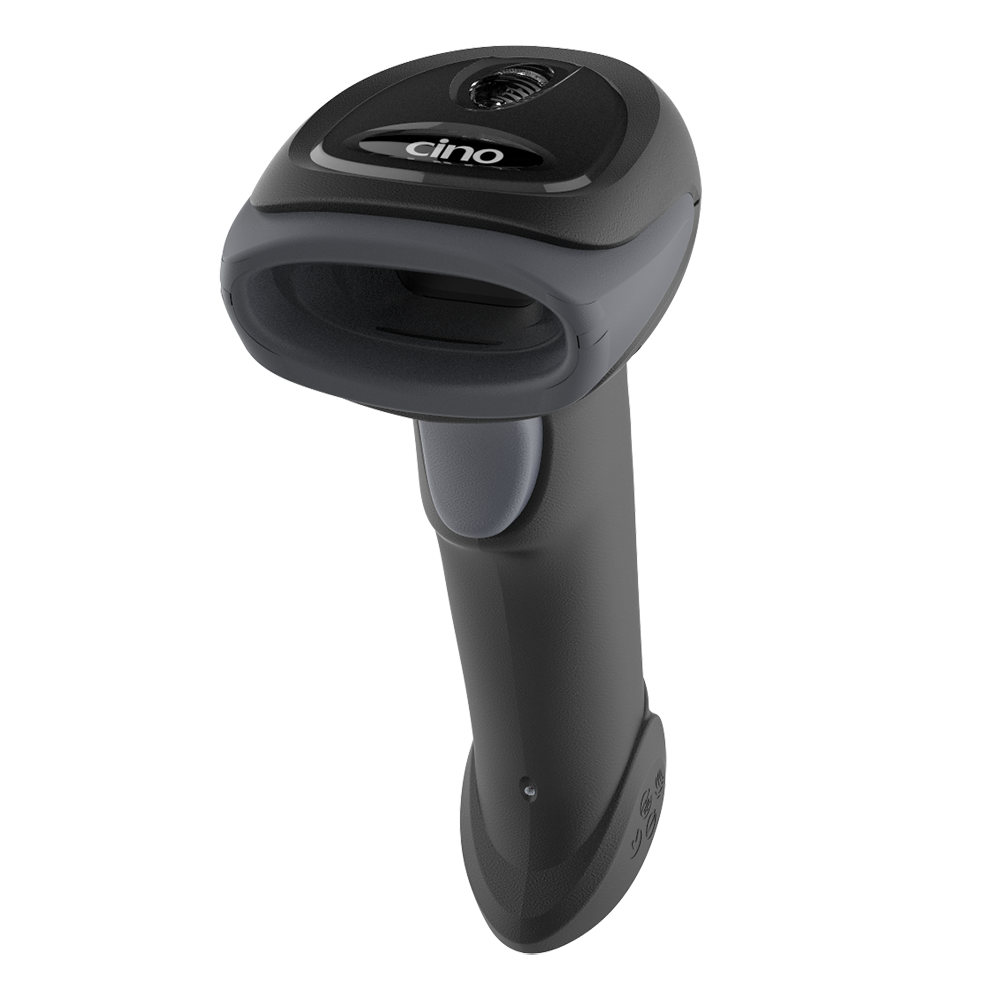

CINO A660 Handheld Barcode Scanner 1D 2D PDF417 with USB Cable

CINO A660 Handheld Barcode Scanner 1D 2D PDF417 with USB Cable

Regular price $108.00 USD
Regular price Sale price $108.00 USD
Sale Sold out
Shipping calculated at checkout.
color


A660 Series

An affordable barcode scanner solution for

retail and commercial applications

  • Reads most challenging and problematic barcodes

  • Superior first-time read

  • Omni-directional scanning

  • Clear audio and visual feedback

  • Optional vibrator for tactile confirmations

  • Withstands drops from 1.8m onto concrete

  • Supports multilingual data output

  • Single scan configuration with the iCode

  • Advanced data processing with DataWizard Premium

  • Cost-free security with Security Plus


  • The A660 handheld scanner is built to deliver maximum value. Its versatility and affordable pricing make it a tool of choice for retail applications, as well as general use. Supported by Cino’s advanced imaging platform, it rapidly scans barcodes from product labels, membership cards, and electronic coupons, whether 1D or 2D. The A660 is a highly cost-effective option that will fit any budget!


    No Compromise on Performance

    The A660 not only brings exceptional reading performance, but can also output data in numerous languages to cover a vast range of scanning requirements. It boosts up your return on investment.


    Capture Most Real-world Barcodes

    CinSupported by the latest imaging technology, this scanner captures a wide range of 1D and 2D barcodes, as well as a myriad of problematic items that are often encountered by businesses, for example: distorted, soiled, or damaged labels, barcodes on curve or reflective surface, electronic coupons on smartphone screens with poor lighting.o 2D scanners support the output of multiple languages, including single-byte languages like Arabic, German, Greek, Russian, Turkish, and more. Double-byte Asian languages such as Chinese, Japanese, and Korean are also covered. Remove your language barriers and expand your business horizons with multilingual output capabilities.


    Output Data in Diverse Languages

    Cino 2D scanners support the output of multiple languages, including single-byte languages like Arabic, German, Greek, Russian, Turkish, and more. Double-byte Asian languages such as Chinese, Japanese, and Korean are also covered. Remove your language barriers and expand your business horizons with multilingual output capabilities.


    Enhanced User Experience

    Designed with users in mind, the A660 is equipped with practical and user-friendly features to enhance your scanning experience.


    Simple and Intuitive Scanning

    This model allows for omni-directional reading, which makes it easy and fun to use. No need to pre-align your scanner with the barcode. Simply point, scan and you’re good to go! Thanks to this feature, scanning becomes highly intuitive and effortless.


    Sharp Aimer for Rapid Targeting

    The scanner’s “round spot” LED beam helps users aim faster and with greater accuracy. A separate background light is also projected to further expedite data capture; this bright red illumination is particularly useful when ambient light is low.


    Clear Status Indications

    Equipped with a loud beeper and multi-color LED lights, this scanner provides the status information you need through conspicuous feedback. An optional vibrator is available to deliver tactile indications if silent signals are preferred, or when loud background noises make it difficult to hear the scanner’s beeping.


    Stylish, Ergonomic and Robust

    Combining style, ergonomics and robustness, this model provides an outstanding user experience on all levels. Elegant in appearance, it will easily blend into any commercial décor. The scanner’s sleek handle is ergonomically designed to afford a natural, comfortable grip all shift long. Furthermore, its robust enclosure can withstand 1.8-meter falls onto concrete, granting a high degree of protection against unintentional drops.


    Value Beyond Measure

    Cino offers a host of innovative technologies to enhance A660’s usability, flexibility and diversity. It brings exceptional value to unleash your productivity.


    Single Scan Configuration

    The iCode is a configuration barcode designed to simplify and accelerate your setup process. It can be embedded with several commands, thereby allowing the simultaneous change of numerous parameters. Instead of configuring their Cino scanners with multiple barcodes, users can achieve identical results with a single iCode.


    Powerful Data Processing

    DataWizard Premium enables Cino scanners to execute complex formatting and processing actions through user-developed scripts. For example: parsing the information captured from a driver’s license, adding a prefix or suffix to data prior to output, and populating GS1 barcode data in the format or sequence required by your host software.


    Cost-Free Security

    Security Plus guards your host application by restricting its access to authorized FuzzyScan scanners. This powerful safety feature defends against unwanted scanner connections with the help of user-defined algorithms. Security Plus is available to Cino clients at no extra cost, offering protection and peace of mind.

Performance Characteristics

Imager Field of View

36° H x 27° V

Image Sensor

640 x 480 Pixels

Print Contrast

20% minimum reflectance difference

Light Source

660nm LED

Min. Resolution

3 mil Code 39, 5 mil DataMatrix

Reading Range

13 mil (0.33mm) UPC/EAN up to 15.6”

Roll, Pitch, Skew

Roll: 360˚; Pitch: ± 75˚; Skew: ± 65˚

Motion Tolerance

Up to 627 cm/s (247 in/s)

Configuration Setup

FuzzyScan Barcode commands
FuzzyScan iCode
FuzzyScan PowerTool

Data Processing

DataWizard Premium

User Interfaces

USB HID (USB Keyboard)
USB VCOM (USB COM port emulation)
Standard RS232

User Environment

Drop Specifications

Withstand multiple drops at 1.8m (6.0ft) to concrete

Environmental Sealing

IP42

Operating Temperature

-10°C to 50°C (14°F to 122°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Humidity

5% to 95% relative humidity, non-condensing

Ambient Light Immunity

0 ~ 100,000 lux

ESD Protection

Functional after 15kV discharge

Supported Symbologies

1D Linear Codes

Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey

2D Codes

PDF417, Micro PDF417, Codablock F, Code 16K, Code 49, Composite Codes, DataMatrix, MaxiCode, QR Code, MicroQR , Aztec

Postal Codes

Australian Post, US Planet, US Postnet, Japan Post, Posi LAPA State Code

Physical Characteristics

Dimension

97.0 mm (L) x 65.0 mm (W) x 156.0 mm (D)
3.81 in. (L) x 2.55 in. (W) x 6.14 in. (D)

Weight

135g (cable excluded)

Color

Black, Light Gray

User Feedback

LEDs for power, good read, and status
Programmable beeper
Optional vibrator

Operating Voltage

5VDC ± 10%

Operating Current

Operating : Typical 310 mA @5VDC
Standby : Typical 210 mA @5VDC

Safety & Regulatory

EMC

CE, FCC, BSMI, RCM, KC, VCCI

Safety

LED Eye Safety IEC62471 Exempt group

Environmental

Compliant with RoHS directive
